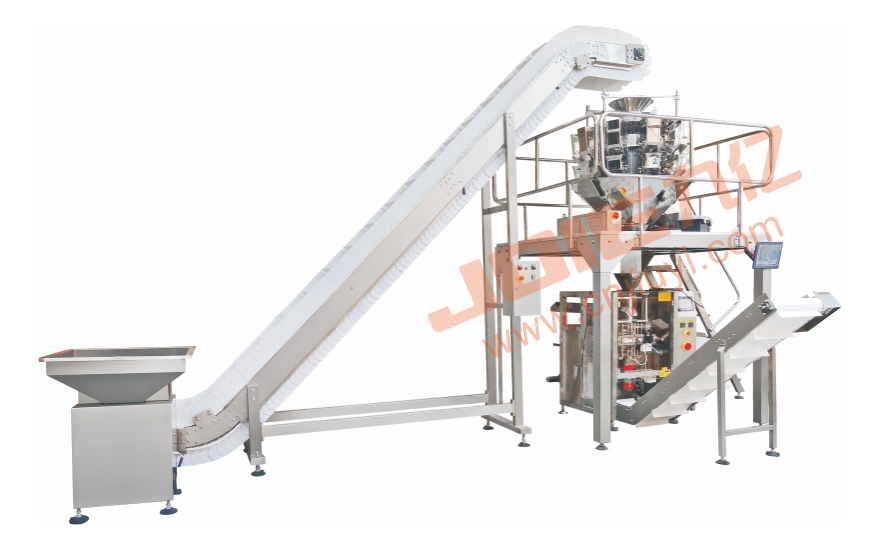

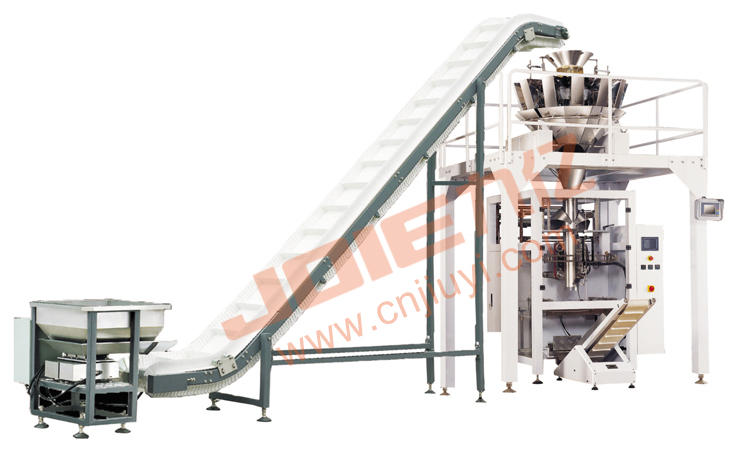

机组构成
| 1、JEV系列主机 | 2、震动送料机 |
| 3、十头电脑组合称 | 4、支撑平台 |
| 5、物料输送机 | 6、成品输送机 |
技术参数
| 机型 | JEV-520AG(gusseted bag) | JEV-680AG(gusseted bag) | JEV-820AG(gusseted bag) |
| 计量范围 | 2000ml(Max) | 4000ml(Max) | 6000ml(Max) |
| 正面宽 | 75-130mm | 75-130mm | 75-130mm |
| 侧面宽 | 40-80mm | 40-80mm | 40-80mm |
| 边封宽 | 5-10mm | 5-10mm | 5-10mm |
| 袋长 | 100-380mm | 100-380mm | 100-380mm |
| 包装速度 | 10-60bags/min | 10-60bags/min | 10-60bags/min |
| 包装材料 | OPP/PP、OPP/CPP PT/PE、PE、KOP/CPP、PT/PE/x AL/PE etc. Any heat-sealable composite materials foil/film | ||
| 薄膜宽度 | 520mm(gusseted bag:460mm) | 680mm(gusseted bag:520mm) | 820mm(gusseted bag:680mm) |
| 电源 | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ |
| 整机功率 | 5.5Kw | 5.5Kw | 5.5Kw |
| 外型尺寸 | L1500*W1220*H1800mm | L1500*W1220*H 1800mm | L1500*W1220*H 1800mm |
| 整机重量 | 600Kg | 700Kg | 850Kg |
